IntervalEstimationThreshold#

class skactiveml.pool.multiannotator.IntervalEstimationThreshold(epsilon=0.9, alpha=0.05, random_state=None, missing_label=nan)[source]#

Bases: MultiAnnotatorPoolQueryStrategy

Interval Estimation Threshold (IEThresh)

The strategy ‘Interval Estimation Threshold’ (IEThresh) [1] is useful for addressing the exploration vs. exploitation trade-off when dealing with multiple error-prone annotators in active learning. This class relies on IntervalEstimationAnnotModel for estimating the annotation performances, i.e., label accuracies, of multiple annotators. Samples are selected based on ‘Uncertainty Sampling’ (US). The selected samples are labeled by the annotators whose estimated annotation performances are equal or greater than an adaptive threshold. The features to be labeled are chosen by using uncertainty sampling with a least confidence score. The strategy assumes all annotators are available for each candidate sample. Samples with any unavailable annotator are excluded from selection. By default, only fully unlabeled samples are candidates. Samples with partial annotations can be used for training, but are not selected again by default. Explicit candidates and availability masks define the query pool directly. Callers must ensure that it represents previously unqueried samples to follow the workflow in [1].

Parameters:
epsilonfloat, interval=[0, 1], default=0.9

Parameter for specifying the adaptive threshold used for annotator selection.

alphafloat, interval=(0, 1), default=0.05

Significance level of the confidence interval based on Student’s t-distribution, i.e., the confidence level is 1 - alpha.

random_stateint or np.random.RandomState or None, default=None

The random state to use.

missing_labelscalar or string or np.nan or None, default=np.nan

Value to represent a missing label.

References

[1] (1,2)

P. Donmez, J. G. Carbonell, and J. Schneider. Efficiently Learning the Accuracy of Labeling Sources for Selective Sampling. In ACM SIGKDD Int. Conf. Knowl. Discov. Data Min., pages 259–268, 2009.

Methods

query(X, y, clf[, fit_clf, candidates, ...])

Determines which candidate sample is to be annotated by which annotator.

get_metadata_routing()

Get metadata routing of this object.

get_params([deep])

Get parameters for this estimator.

set_params(**params)

Set the parameters of this estimator.

IntervalEstimationThreshold.query(X, y, clf, fit_clf=True, candidates=None, annotators=None, sample_weight=None, batch_size='adaptive', return_utilities=False)[source]#

Determines which candidate sample is to be annotated by which annotator.

Parameters:
Xarray-like of shape (n_samples, n_features)

Training data set, usually complete, i.e., including the labeled and unlabeled samples.

yarray-like of shape (n_samples, n_annotators)

Labels of the training data set for each annotator (possibly including missing annotations indicated by self.missing_label), meaning that y[i, j] contains the label from annotator j for sample i. Partially annotated samples are supported as training data.

clfskactiveml.base.SkactivemlClassifier

Model implementing the methods fit and predict_proba.

fit_clfbool, default=True

Defines whether the classifier should be fitted on X, y, and sample_weight.

candidatesNone or array-like of shape (n_candidates), dtype=int or array-like of shape (n_candidates, n_features), default=None

Candidate samples to query. Explicit candidates define the query pool independently of missing labels in y. See annotators for the supported representations and availability restrictions.

annotatorsNone or array-like of shape (n_avl_annotators), dtype=int or array-like of shape (n_candidates, n_annotators), default=None

A candidate is eligible only if all annotators are available for it. Availability determines eligibility before the performance threshold selects which annotators to query.

  • If candidates=None and annotators=None, only fully unlabeled rows of y are eligible.

  • If candidates=None and annotators is specified, all samples of X are candidates and n_candidates equals len(X). The supplied availability replaces the missing-label mask.

  • If candidates is of shape (n_candidates,) and of type int, candidates is considered as the indices of the sample candidates in (X, y).

  • If candidates is of shape (n_candidates, n_features), the sample candidates are directly given in candidates (not necessarily contained in X).

  • If annotators=None and candidates are explicitly specified, all annotators are considered available.

  • If annotators is of shape (n_avl_annotators), and of type int, annotators is considered as the indices of the available annotators. A strict subset leaves no eligible samples.

  • If annotators is a boolean array of shape (n_candidates, n_annotators), a sample is eligible only if all entries in its row are True.

sample_weightarray-like, (n_samples, n_annotators), default=None

It contains the weights of the training samples’ class labels. It must have the same shape as y.

batch_size‘adaptive’ or int, default=’adaptive’

The number of sample-annotator pairs selected in one AL cycle. If ‘adaptive’ is set, the batch_size is determined based on the annotation performances and the parameter epsilon.

return_utilitiesbool, default=False

If True, also return the utilities based on the query strategy.

Returns:
query_indicesnp.ndarray of shape (batch_size, 2)

The query_indices indicate which candidate sample pairs are to be queried is, i.e., which candidate sample is to be annotated by which annotator, e.g., query_indices[:, 0] indicates the selected candidate samples and query_indices[:, 1] indicates the respectively selected annotators.

  • If candidates is None or of shape (n_candidates,), the indexing of refers to samples in X.

  • If candidates is of shape (n_candidates, n_features), the indexing refers to samples in candidates.

utilities: numpy.ndarray of shape (batch_size, n_samples, n_annotators) or numpy.ndarray of shape (batch_size, n_candidates, n_annotators)

The utilities of all candidate samples w.r.t. to the available annotators after each selected sample of the batch, e.g., utilities[0, :, j] indicates the utilities used for selecting the first sample-annotator-pair (with indices query_indices[0]).

  • If candidates is None or of shape (n_candidates,), the indexing refers to samples in X.

  • If candidates is of shape (n_candidates, n_features), the indexing refers to samples in candidates.

IntervalEstimationThreshold.get_metadata_routing()#

Get metadata routing of this object.

Please check User Guide on how the routing mechanism works.

Returns:
routingMetadataRequest

A MetadataRequest encapsulating routing information.

IntervalEstimationThreshold.get_params(deep=True)#

Get parameters for this estimator.

Parameters:
deepbool, default=True

If True, will return the parameters for this estimator and contained subobjects that are estimators.

Returns:
paramsdict

Parameter names mapped to their values.

IntervalEstimationThreshold.set_params(**params)#

Set the parameters of this estimator.

The method works on simple estimators as well as on nested objects (such as Pipeline). The latter have parameters of the form <component>__<parameter> so that it’s possible to update each component of a nested object.

Parameters:
**paramsdict

Estimator parameters.

Returns:
selfestimator instance

Estimator instance.

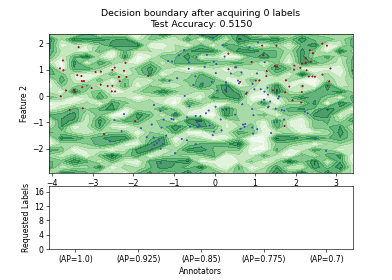

Examples using skactiveml.pool.multiannotator.IntervalEstimationThreshold#

Interval Estimation Threshold

Interval Estimation Threshold
